Rhenium sheets from Shanghai Metal Corporation are pure rhenium metal products which were deeply processing with

high temperature and high pressure.Rhenium plate is used for manufacturing pure Rhenium heating parts under special

working atmosphere, and also can be used as pure rhenium sputtering target.

Specification of Rhenium Sheet:
1)Standard: YS/T 895-2013
2)Grade: ＞99.9%Re
3)Size: 0.2~20mm thickness; 500mm width max; 1,000mm length max

Advantage of Rhenium Sheet:
− High density，theoretical density is 21.02g/cm3
− High melting point: 3180℃
− Strong resistance to chemical corrosion
− High mechanical strength
− High resistivity
− A high coefficient of resistance over a wide temperature range
− Ductility can be obtained after recrystallization
− Low vapor pressure
− Favorable shock resistance

Technical information of Rhenium Sheet:

1)Chemical Composition:

main content:Re 99.95% min(excluding gas elements)

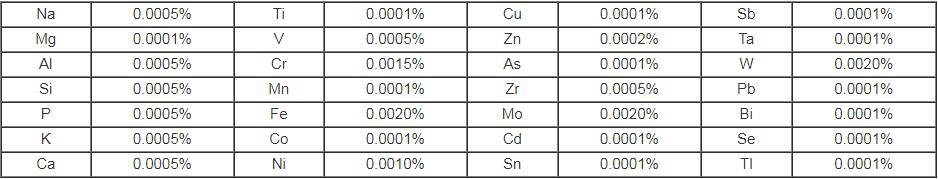

Maximum trace metallic impurities,analysed by ICP-MS

2)Processing method

Raw materials→reduction→metal powder→mixing→pressing→firing→ forming→heat treatment→

processing connection plating→finished products

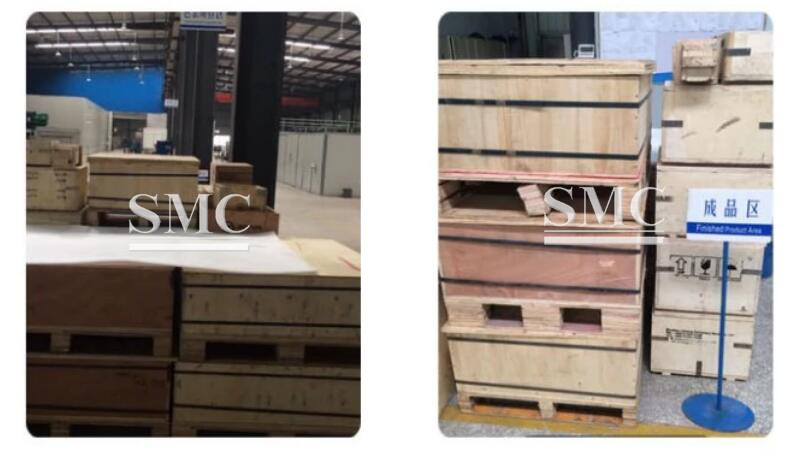

Packaging of Rhenium Sheet:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests.

Great care is taken to avoid any damage which might be caused during storage or transportation.

In addition, clear labels are tagged on the outside of the packages for easy identification of the product

I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Application of Rhenium Sheet:

Rhenium Sheet is widely used in heating element, thermocouple for temperature measurement,

cathode of electron tube and refractory parts for industrial high temperature furnace, etc.

Rhenium and its alloys have different application in the field of high temperature components and

temperature measurement due to its excellent performance. Mainly include:

− Components for aerospace

− Componenets for industrial high temperature furnace

− Semiconductor industry components

− Electronic industry

− Welding industry
